In version 1.2 on PC, Le Mans Ultimate has added native, in-game telemetry recording which exports to a DuckDB file.
Setting up telemetry recording

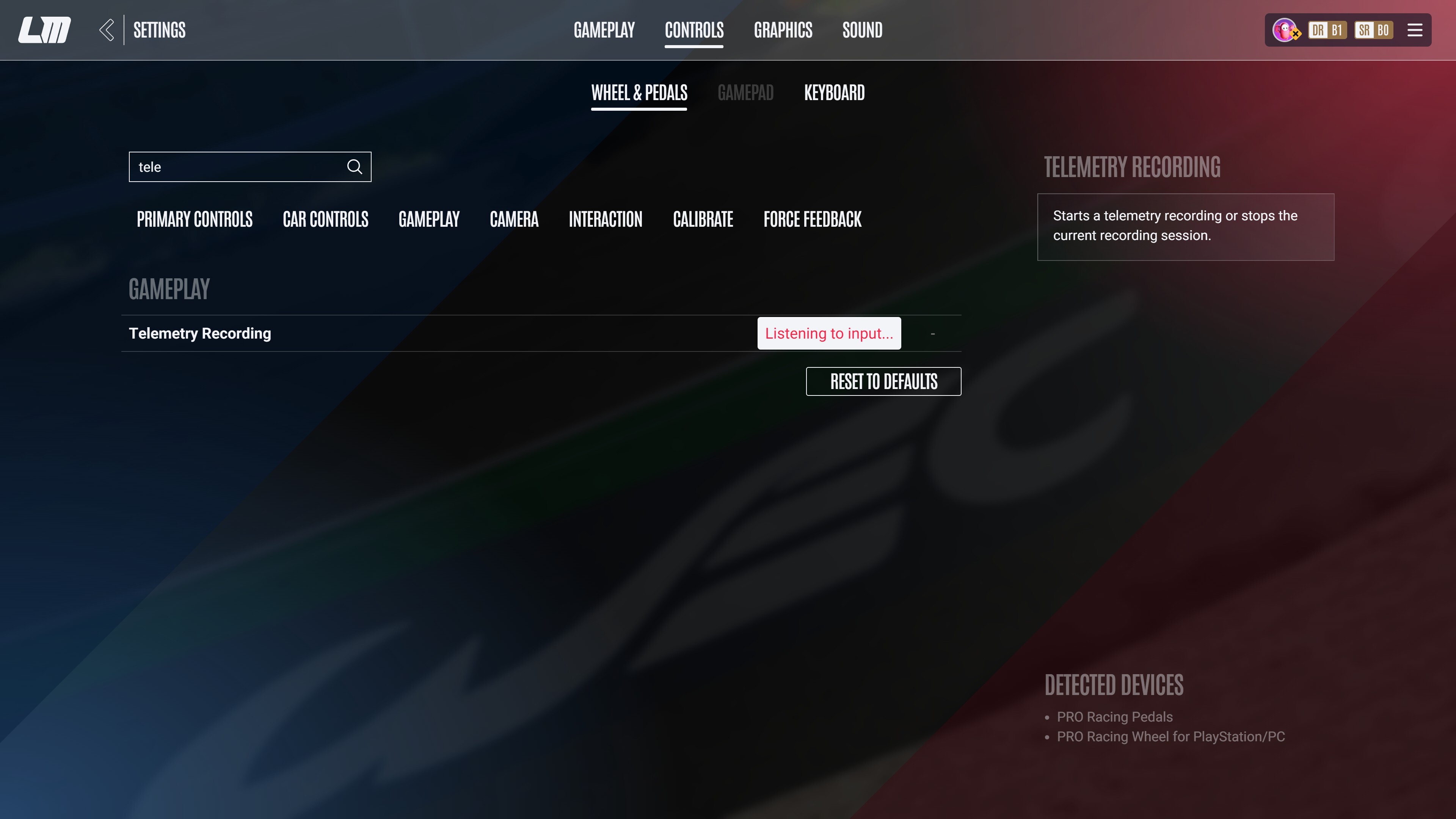

You can either set up telemetry to record automatically in "gameplay" settings or map a button to start recording in your control bindings - there is not one set by default.

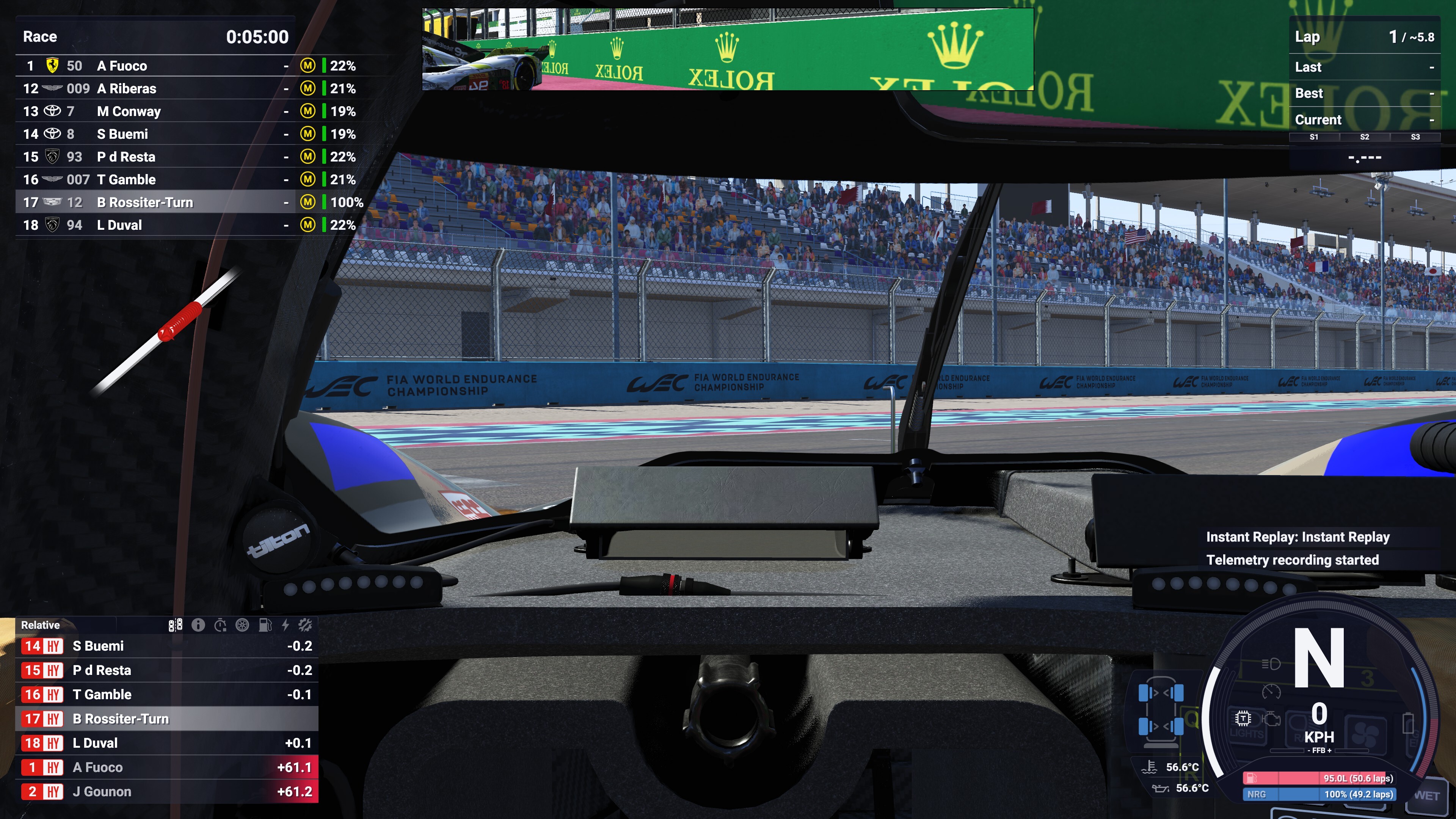

When on-track, you will see that the "Telemetry recording started" text appears above the tachometer on the right-hand side when telemetry recording is active.
Configuring channel recordings
In UserData/Telemetry you can find a config.json file. You can configure this file in order to remove some channels/events from the list of recorded data or increase/decrease their frequency but this may have some performance implications.
An example config.json is listed below:
{
"Channels": {
"Ambient Temperature": {
"Frequency": 1,
"Name": "Ambient Temperature"
},
"Brake Pos": {
"Frequency": 50,
"Name": "Brake Pos"
},
"Brake Pos Unfiltered": {
"Frequency": 50,
"Name": "Brake Pos Unfiltered"
},
"Brake Tickness": {
"Frequency": 10,
"Name": "Brake Tickness"
},
"Brakes Force": {
"Frequency": 50,
"Name": "Brakes Force"
},
"Brakes Temp": {
"Frequency": 50,
"Name": "Brakes Temp"
},
"Clutch Pos": {
"Frequency": 50,
"Name": "Clutch Pos"
},
"Clutch Pos Unfiltered": {
"Frequency": 50,
"Name": "Clutch Pos Unfiltered"
},
"Clutch RPM": {
"Frequency": 100,
"Name": "Clutch RPM"
},
"Drag": {
"Frequency": 100,
"Name": "Drag"
},
"Engine Oil Temp": {
"Frequency": 7,
"Name": "Engine Oil Temp"
},
"Engine RPM": {
"Frequency": 100,
"Name": "Engine RPM"
},
"Engine Water Temp": {
"Frequency": 7,
"Name": "Engine Water Temp"
},
"FFB Output": {
"Frequency": 100,
"Name": "FFB Output"
},
"Front3rdDeflection": {
"Frequency": 100,
"Name": "Front3rdDeflection"
},
"FrontDownForce": {
"Frequency": 100,
"Name": "FrontDownForce"
},
"FrontRideHeight": {
"Frequency": 100,
"Name": "FrontRideHeight"
},
"FrontWingHeight": {
"Frequency": 100,
"Name": "FrontWingHeight"
},
"Fuel Level": {
"Frequency": 20,
"Name": "Fuel Level"
},
"G Force Lat": {
"Frequency": 10,
"Name": "G Force Lat"
},
"G Force Long": {
"Frequency": 10,
"Name": "G Force Long"
},
"G Force Vert": {
"Frequency": 10,
"Name": "G Force Vert"
},
"GPS Latitude": {
"Frequency": 10,
"Name": "GPS Latitude"
},
"GPS Longitude": {
"Frequency": 10,
"Name": "GPS Longitude"
},
"GPS Speed": {
"Frequency": 10,
"Name": "GPS Speed"
},
"GPS Time": {
"Frequency": 100,
"Name": "GPS Time"
},
"Ground Speed": {
"Frequency": 100,
"Name": "Ground Speed"
},
"Lap Dist": {
"Frequency": 10,
"Name": "Lap Dist"
},
"Lateral Acceleration": {
"Frequency": 100,
"Name": "Lateral Acceleration"
},
"Longitudinal Acceleration": {
"Frequency": 100,
"Name": "Longitudinal Acceleration"
},
"OverheatingState": {
"Frequency": 2,
"Name": "OverheatingState"
},
"Path Lateral": {
"Frequency": 10,
"Name": "Path Lateral"
},
"ReadDownForce": {
"Frequency": 100,
"Name": "ReadDownForce"
},
"Rear3rdDeflection": {
"Frequency": 100,
"Name": "Rear3rdDeflection"
},
"RearRideHeight": {
"Frequency": 100,
"Name": "RearRideHeight"
},
"Regen Rate": {
"Frequency": 100,
"Name": "Regen Rate"
},
"RideHeights": {
"Frequency": 100,
"Name": "RideHeights"
},
"SoC": {
"Frequency": 20,
"Name": "SoC"
},
"Steered Angle": {
"Frequency": 100,
"Name": "Steered Angle"
},
"Steering Pos": {
"Frequency": 100,
"Name": "Steering Pos"
},
"Steering Pos Unfiltered": {
"Frequency": 100,
"Name": "Steering Pos Unfiltered"
},
"Steering Shaft Torque": {
"Frequency": 100,
"Name": "Steering Shaft Torque"
},
"Susp Pos": {
"Frequency": 100,
"Name": "Susp Pos"
},
"Throttle Pos": {
"Frequency": 50,
"Name": "Throttle Pos"
},
"Throttle Pos Unfiltered": {
"Frequency": 50,
"Name": "Throttle Pos Unfiltered"
},
"Time Behind Next": {
"Frequency": 2,
"Name": "Time Behind Next"
},
"Total Dist": {
"Frequency": 10,
"Name": "Total Dist"
},
"Track Edge": {
"Frequency": 10,
"Name": "Track Edge"
},
"Track Temperature": {
"Frequency": 1,
"Name": "Track Temperature"
},
"Turbo Boost Pressure": {
"Frequency": 100,
"Name": "Turbo Boost Pressure"
},
"Tyres Wear": {
"Frequency": 10,
"Name": "Tyres Wear"
},
"TyresCarcassTemp": {
"Frequency": 5,
"Name": "TyresCarcassTemp"
},
"TyresPressure": {
"Frequency": 10,
"Name": "TyresPressure"
},
"TyresRubberTemp": {
"Frequency": 10,
"Name": "TyresRubberTemp"
},
"TyresTempCentre": {
"Frequency": 100,
"Name": "TyresTempCentre"
},
"TyresTempLeft": {
"Frequency": 100,
"Name": "TyresTempLeft"
},
"TyresTempRight": {
"Frequency": 100,
"Name": "TyresTempRight"
},
"Virtual Energy": {
"Frequency": 20,
"Name": "Virtual Energy"
},
"Wheel Speed": {
"Frequency": 100,
"Name": "Wheel Speed"
},
"Wind Heading": {
"Frequency": 1,
"Name": "Wind Heading"
},
"Wind Speed": {
"Frequency": 1,
"Name": "Wind Speed"
},
"Yaw Rate": {
"Frequency": 100,
"Name": "Yaw Rate"
}
},
"Events": {
"ABS": {
"Name": "ABS"
},
"ABSLevel": {
"Name": "ABSLevel"
},
"AntiStall Activated": {
"Name": "AntiStall Activated"
},
"Best LapTime": {
"Name": "Best LapTime"
},
"Best Sector1": {
"Name": "Best Sector1"
},
"Best Sector2": {
"Name": "Best Sector2"
},
"Brake Bias Rear": {
"Name": "Brake Bias Rear"
},
"Brake Migration": {
"Name": "Brake Migration"
},
"CloudDarkness": {
"Name": "CloudDarkness"
},
"Current LapTime": {
"Name": "Current LapTime"
},
"Current Sector": {
"Name": "Current Sector"
},
"Current Sector1": {
"Name": "Current Sector1"
},
"Current Sector2": {
"Name": "Current Sector2"
},
"Engine Max RPM": {
"Name": "Engine Max RPM"
},
"Finish Status": {
"Name": "Finish Status"
},
"FrontFlapActivated": {
"Name": "FrontFlapActivated"
},
"FuelMixtureMap": {
"Name": "FuelMixtureMap"
},
"Gear": {
"Name": "Gear"
},
"Headlights State": {
"Name": "Headlights State"
},
"In Pits": {
"Name": "In Pits"
},
"Lap": {
"Name": "Lap"
},
"Lap Time": {
"Name": "Lap Time"
},
"Last Sector1": {
"Name": "Last Sector1"
},
"Last Sector2": {
"Name": "Last Sector2"
},
"LastImpactMagnitude": {
"Name": "LastImpactMagnitude"
},
"LaunchControlActive": {
"Name": "LaunchControlActive"
},
"Minimum Path Wetness": {
"Name": "Minimum Path Wetness"
},
"OffpathWetness": {
"Name": "OffpathWetness"
},
"RearFlapActivated": {
"Name": "RearFlapActivated"
},
"RearFlapLegalStatus": {
"Name": "RearFlapLegalStatus"
},
"Sector1 Flag": {
"Name": "Sector1 Flag"
},
"Sector2 Flag": {
"Name": "Sector2 Flag"
},
"Sector3 Flag": {
"Name": "Sector3 Flag"
},
"Speed Limiter": {
"Name": "Speed Limiter"
},
"SurfaceTypes": {
"Name": "SurfaceTypes"
},
"TC": {
"Name": "TC"
},
"TCCut": {
"Name": "TCCut"
},
"TCLevel": {
"Name": "TCLevel"
},
"TCSlipAngle": {
"Name": "TCSlipAngle"
},
"TyresCompound": {
"Name": "TyresCompound"
},
"WheelsDetached": {
"Name": "WheelsDetached"
},
"Yellow Flag State": {
"Name": "Yellow Flag State"
}
}
}
Inspecting duckdb data
From this link you can download a duckdb extension DuckDB CLI | MotherDuck Docs
Extract the downloaded version, open a terminal and run duckdb -ui
Your browser should then open automatically a new tab with the duckdb viewer from where you can load the telemetry data.
It is possible to convert this DuckDB format as required but this feature is not directly supported by Studio 397.
