The Broadcast Overlay included in the 1.3 update of Le Mans Ultimate (Q1 2926) is an external tool, enabling users to create live and recorded videos with a HTML overlay available to composite outside of the game.
At the time of publish, there are some small known bugs or refinements that for Broadcast Overlays and you should check the game’s known issues.
Getting Started
Firstly, you need to ensure Le Mans Ultimate is running and either start a Race Weekend session or join a hosted multiplayer session (for online, you should join as a spectator).

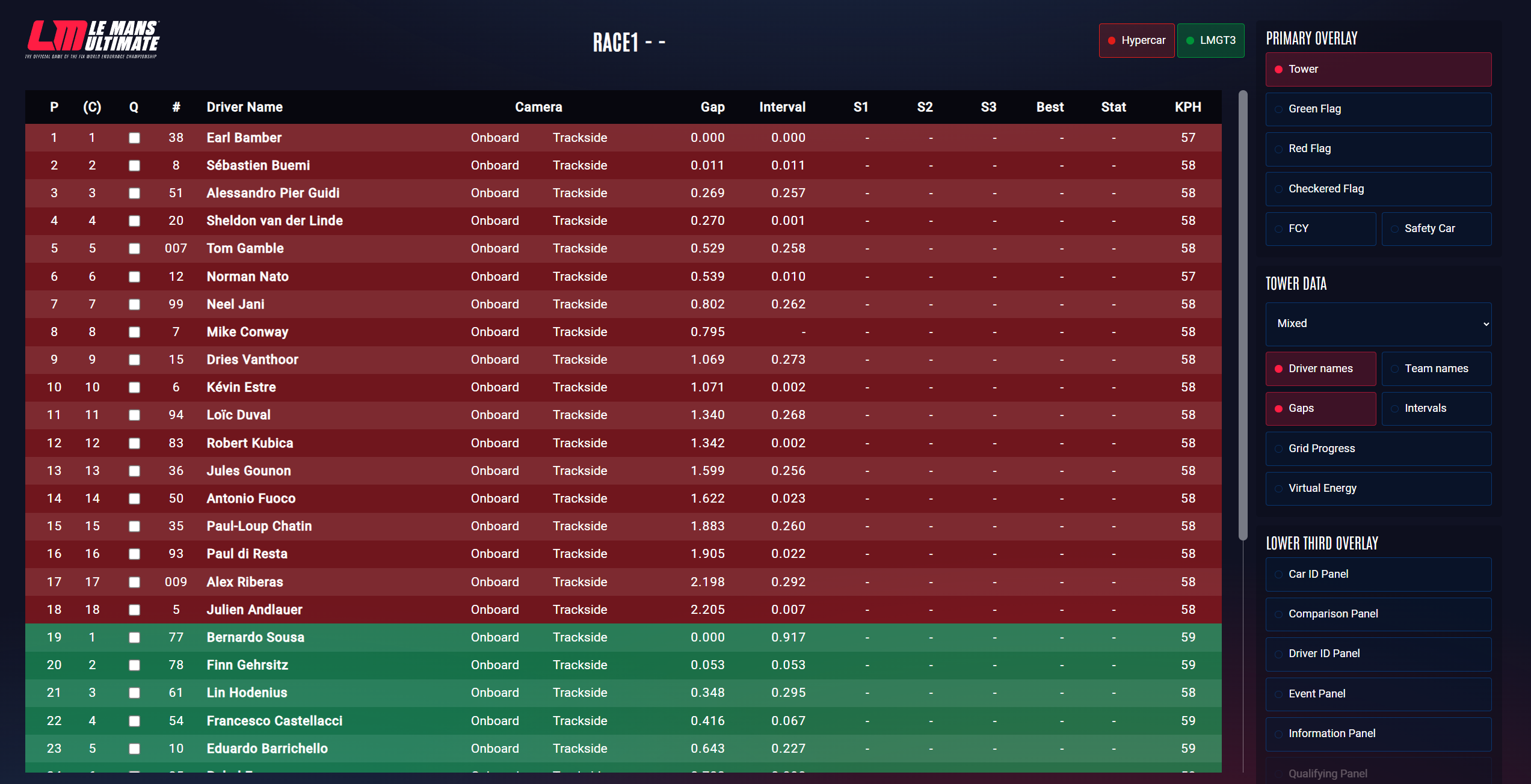

Open your browser of choice and navigate to http://localhost:6397/overlays/controlpanel.html which will bring up the Control Panel that allows you to change the overlay components. Note: you can replace [localhost] with an IP address of another computer if you want to control the overlay from a different PC.
You can then open the Overlay page – either in a web browser to check or directly inside your streaming tool of choice (such as OBS or vMix) at the following address: http://localhost:6397/overlays/overlays.html.

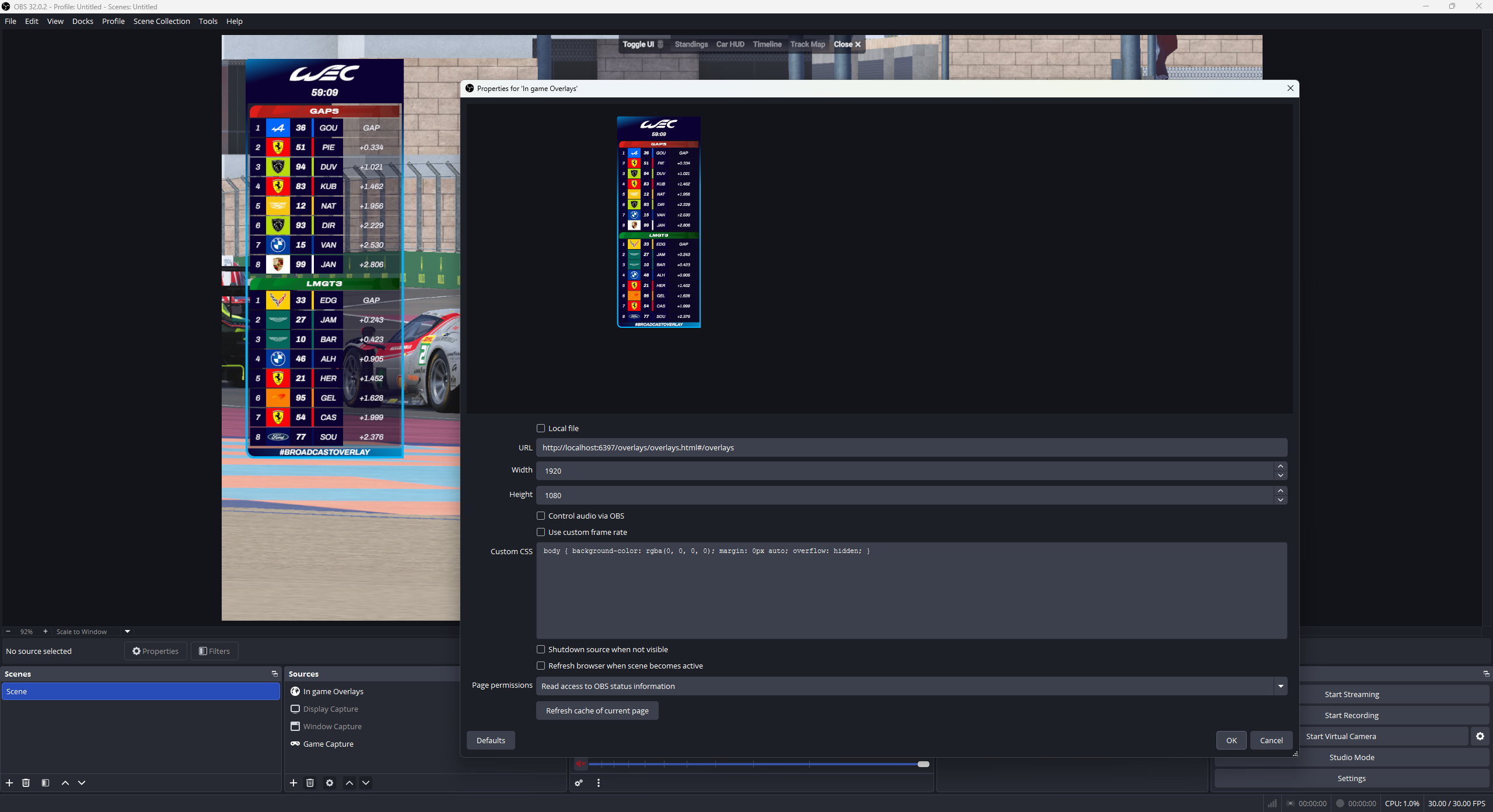

Adding an HTML overlay to OBS is as simple as going to your “scene” and adding a “browser” then inputting the link to overlays.html. You should configure this size to 1920 x1080 as other resolutions are not supported at this time – you can still overlay this on a 4K or other resolution game capture.
When spectating, you should click the “watch” bar – then ensure you are “live” (not in replay)
What does everything do?
Clicking on “onboard” or “trackside” next to a player’s name will snap the camera in game to that user
Tower – turns on the timing tower with gaps/interval/other info
Green Flag – displays 'Green Flag' label next to session info
Red Flag – displays 'Red Flag' Yellow label next to session info (note: as of release of this tool, this is not implemented on a game level but could be used manually by server admins)
Checkered Flag – displays 'Checkered Flag' label next to session info
FCY – displays Full Course Yellow label next to session info (note: as of release of this tool, this is not implemented on a game level but could be used manually by server admins)
Safety Car – displays Safety Car label next to session info (note: as of release of this tool, this is not implemented on a game level but could be used manually by server admins)
Tower Data
Driver or Team – displays either Driver or Team Name in the tower
Mixed/Multiclass/Split [Top 8] – determines what categories to show in the tower
Gaps – displays the gap between all cars and the leader (or class leader)
Intervals – displays the interval between cars
Grid Progress – Positions gained/lost
Virtual Energy – the amount of NRG remaining in a stint
Lower Third Panel
Car ID Panel - displays information related to the car selected in the Broadcast Tool
Driver ID Panel - displays information related to the driver in the car that the camera is focused on
Event Panel* - show data about the current event based on user input (round number, event name, and track name).
Information Panel* - show information, generated by the user to the viewing audience such as additional commentary context, interesting facts or penalties related to the car in focus
*this information will be editable by the broadcaster via the 'Add Custom Data' control panel, located in the top of the page
Lower Third Toggles
Driver ID Stats - paired with the Driver ID Panel to show statistics related to the driver in camera focus.
